| FBTKROS7PF-XS | XS | ||
|
| FBTKROS7PF-S | S | ||
|
| FBTKROS7PF-M | M | ||
|
| FBTKROS7PF-ML | ML | ||
|
| FBTKROS7PF-L | L | ||
|
| FBTKROS7PF-XL | XL |
Frequently Bought Together
Total price:
- Price
- $49.99
Frameset
|

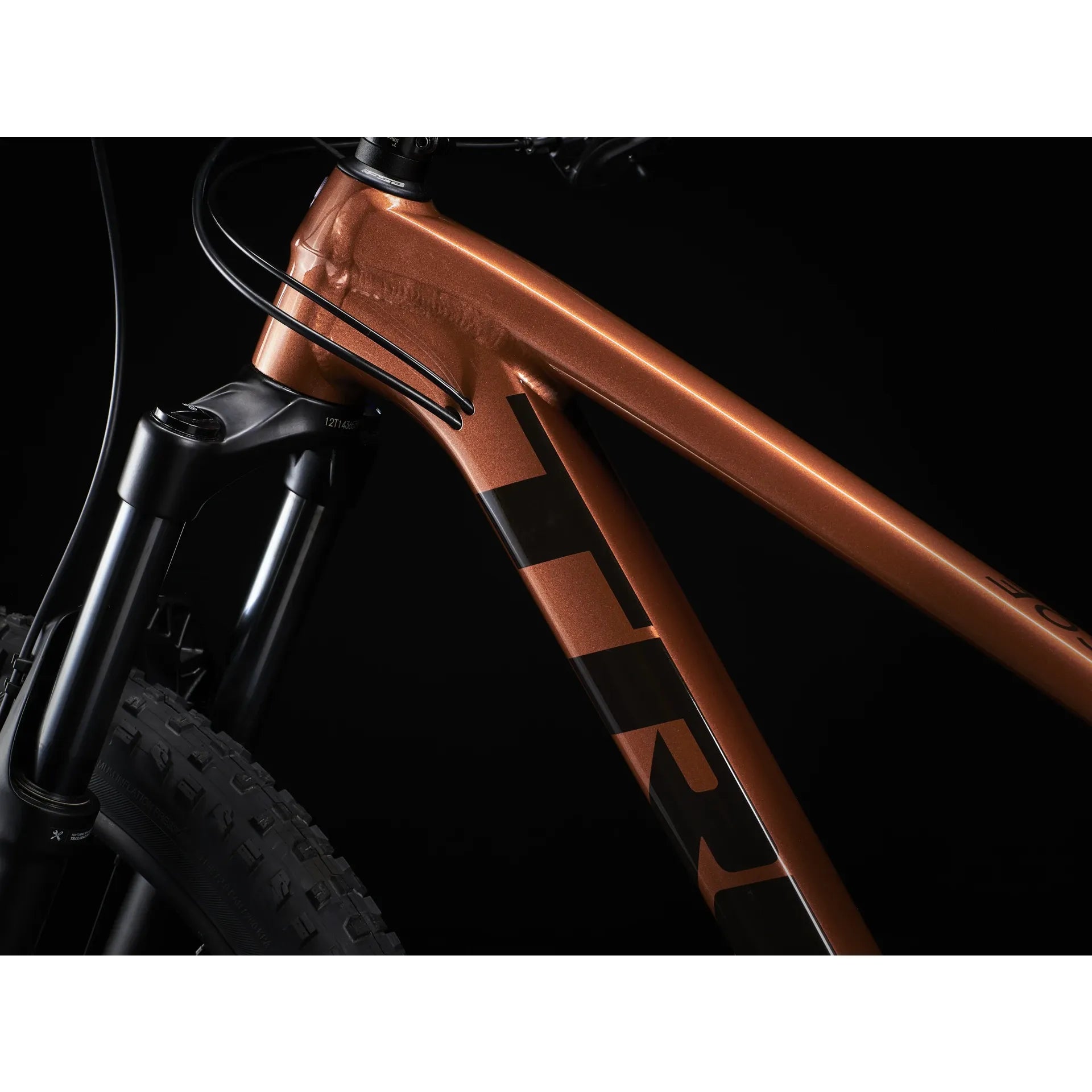

Frame |
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle |
|

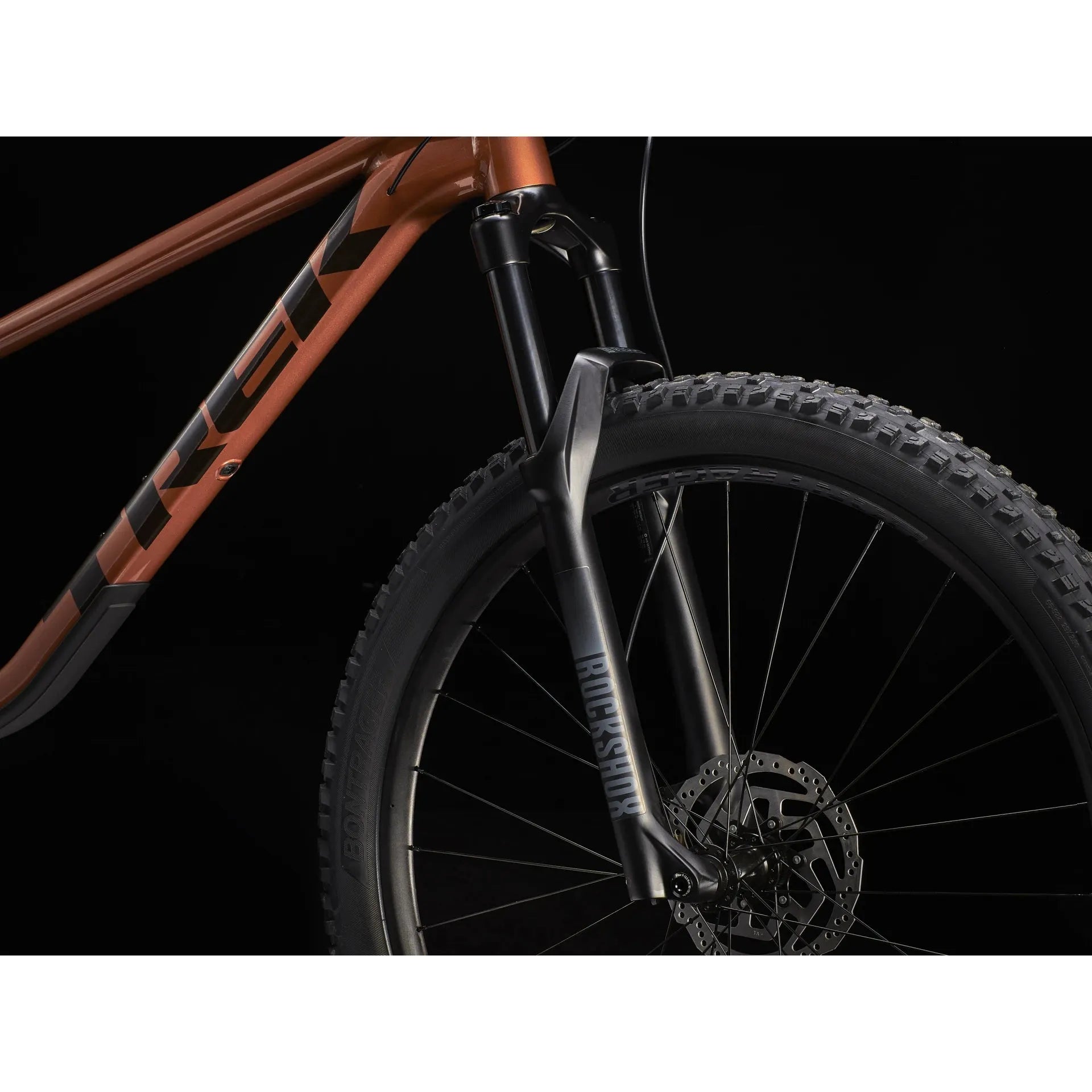

*Fork |
Size: XS RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 37mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
|
|
Size: S, M, ML, L, XL RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 140mm travel |
|
Max compatible fork travel |
See service manual |
Wheels
|
Hub front |
Shimano TC500 alloy, centerlock, 110x15mm thru axle |
|
Hub rear |
Shimano TC500 alloy, centerlock, 148x12mm thru axle |
|
Skewer rear |
Bontrager Switch thru axle, removable lever |
|
Rim |
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
|

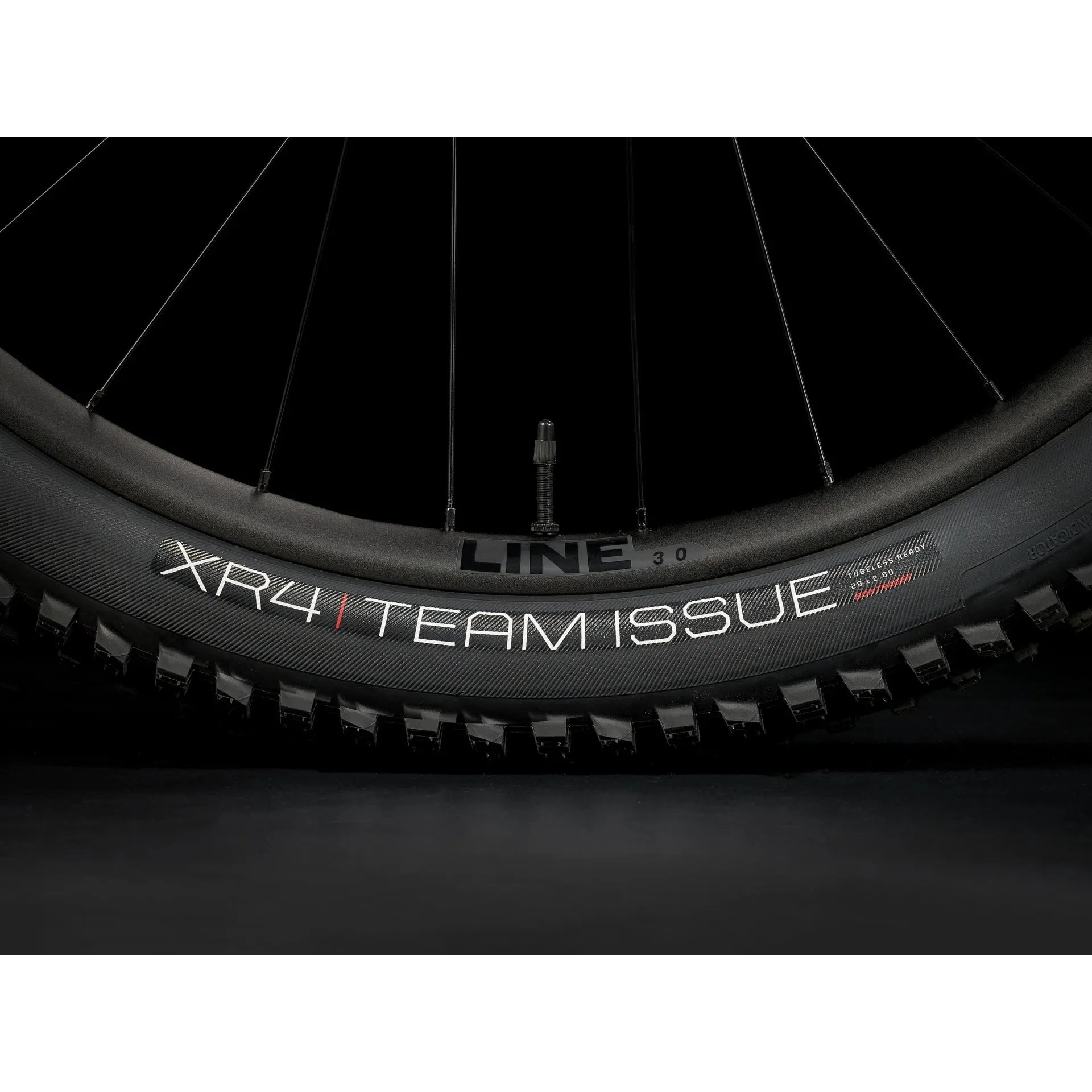

*Tire |
Size: XS Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60'' |
|
|
Size: S, M, ML, L, XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60'' |
|
Tire part |
Bontrager TLR sealant, 6oz |
|
Rim strip |
|
|
Max tire size |
Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |
Drivetrain
|
Shifter |
Shimano Deore M6100, 12 speed |
|

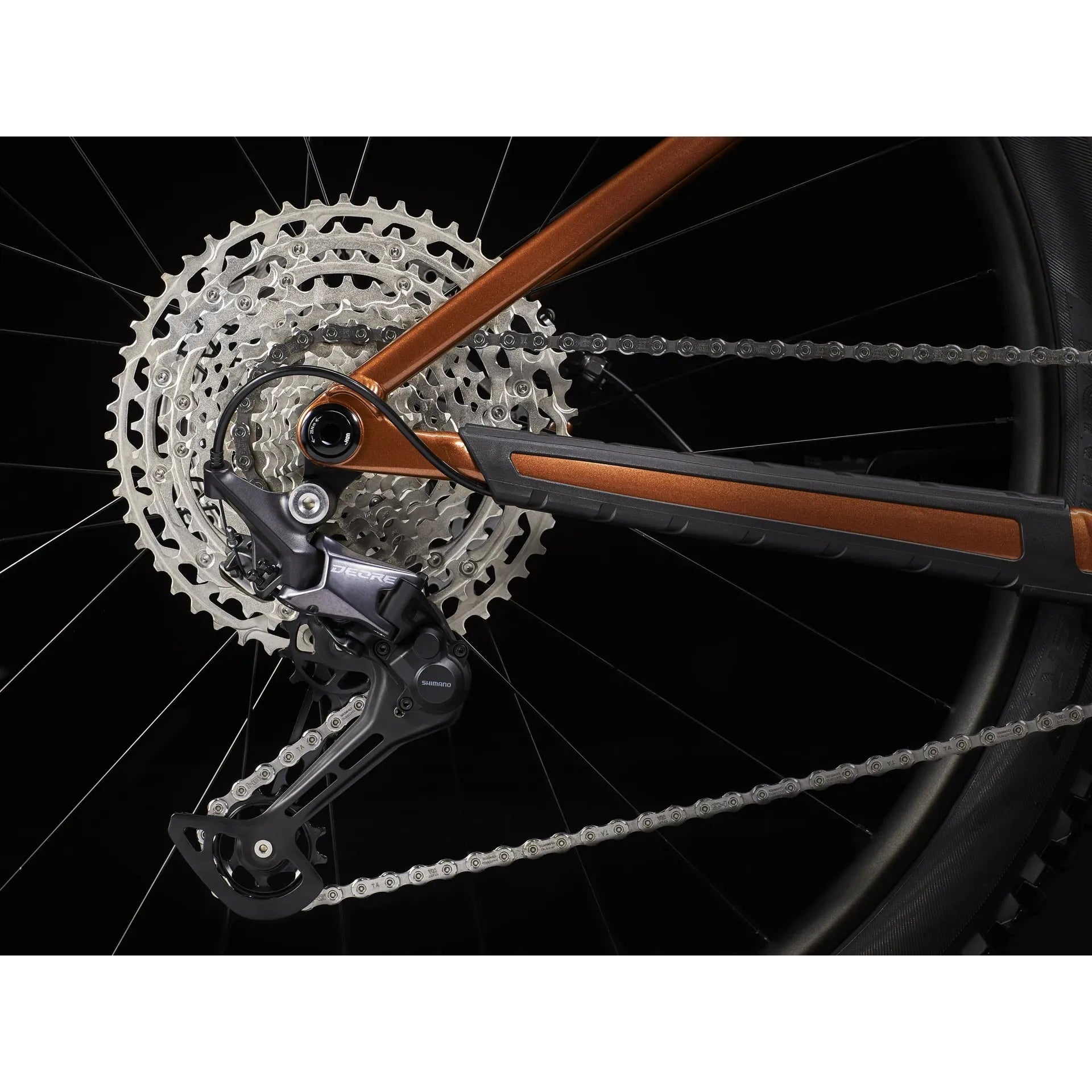

Rear derailleur |
Shimano Deore M6100, long cage |
|

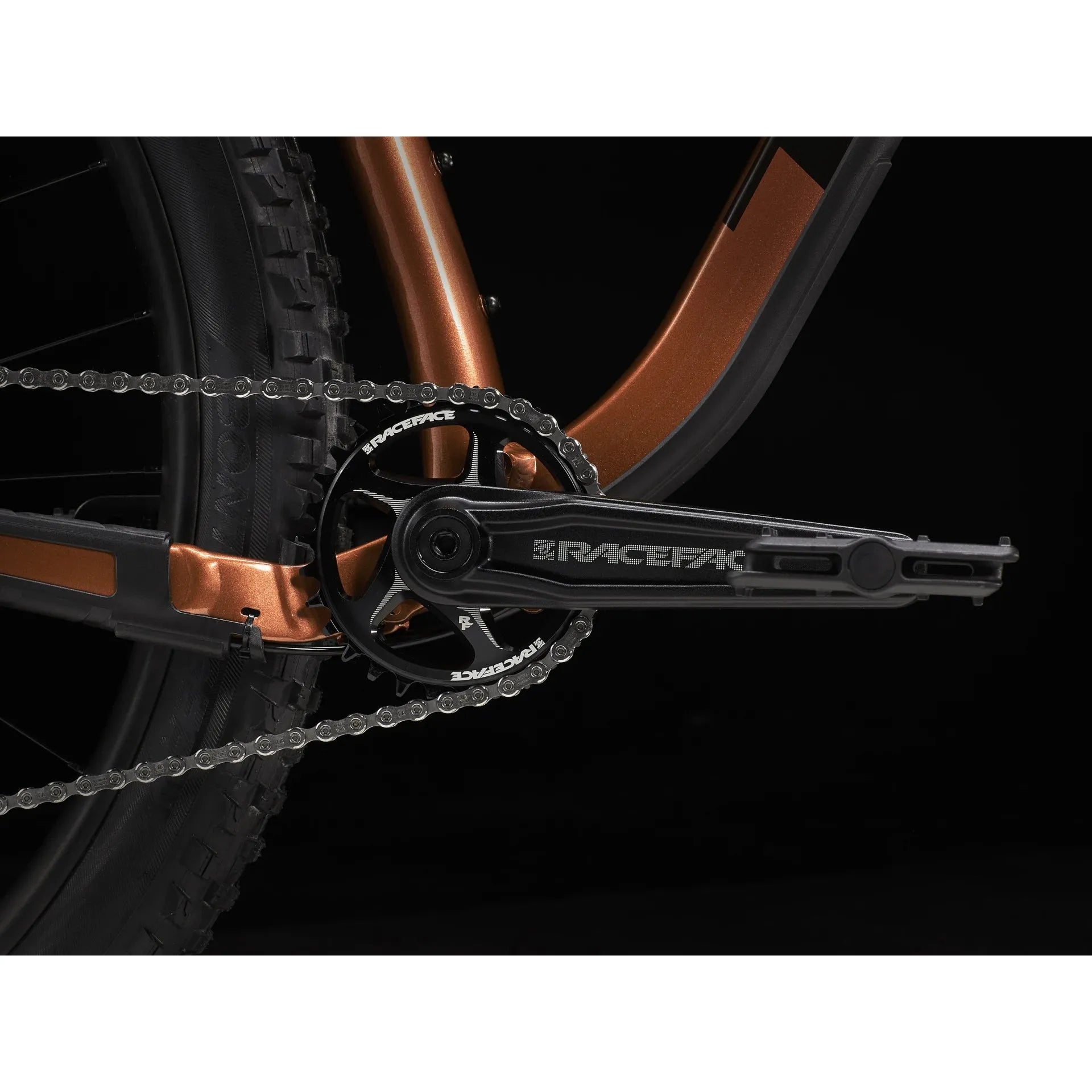

*Crank |
Size: XS, S, M, ML, L Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
|
|
Size: XL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
|
*Bottom bracket |
Size: XS, S, M, ML, L, XL |
|
|
Size: XS, S, M, ML, L, XL Shimano BB-MT501 BSA |
|
Cassette |
Shimano Deore M6100, 10-51, 12 speed |
|
Chain |
Shimano Deore M6100, 12 speed |
|
Pedal |
VP-536 nylon platform |
|
Max chainring size |
1x: 32T (52mm chainline), 34T (55mm chainline) |
Components
|
*Saddle |
Size: XS, S, M, ML, L, XL Bontrager Verse P3, steel rails |
|
|
Size: XS, S, M, ML, L, XL Bontrager Verse Short, stainless steel rails |
|
*Seatpost |
Size: XS, S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
|
|
Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
|
|
Size: ML, L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
|
*Handlebar |
Size: XS, S Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
|
Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width |
|
Grips |
|
|
*Stem |
Size: XS, S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
|
|
Size: M, ML, L, XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
Headset |
FSA IS-2, 1-1/8'' top, 1.5'' bottom |
|

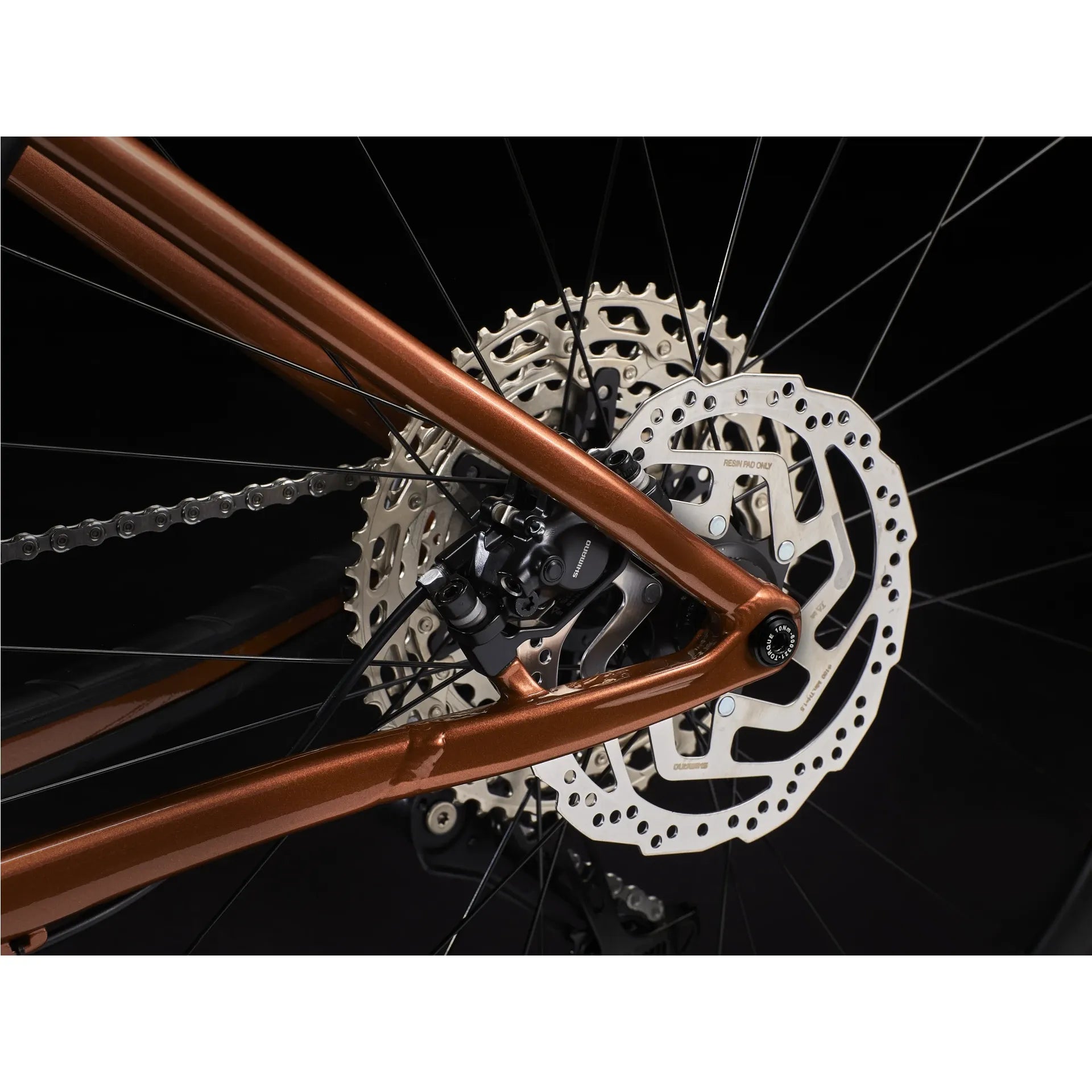

Brake |
Shimano MT200 hydraulic disc |
|
Brake rotor |
Shimano RT10, centerlock, 180mm |
|
Rotor size |
Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
Weight
|
Weight |
M - 14.14 kg / 31.18 lbs (with TLR sealant, no tubes) |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
